GP434-150
GP434-150 Cable Seal with Aluminum Body
The GP434-150 is a high-security aluminum cable seal designed for trucks, containers, and cargo securing applications. It features Gökerplast's specially engineered locking chamber, which prevents tampering attempts by blocking the insertion of pins or other thin tools into the locking mechanism. The seal comes with a 1,50 mm non-preformed security cable that frays when cut, providing clear visual evidence of tampering while ensuring reliable security.
It is available in red, blue, green, yellow and black, and can be personalized with a company name, logo, sequential numbering, and barcodes through permanent laser marking.
GP434-150 offers a tensile strength of 250 kgf, and performs reliably in temperatures from -40°C to +120°C. Combining robust construction with Gökerplast's innovative anti-tampering technology, the GP434-150 delivers a dependable security solution for demanding logistics and industrial applications.
GP434-150 Cable Seal with Aluminum Body Product Features
It is manufactured with aluminum (AL) body and heavy duty steel cable.
Cable Ø1.50mm comes with non-preformed cable that frays when cut,
Standard cable length is 30cm. Please contact the sales team for different lengths.
Company name/logo and serial number up to 8 digits can be printed by laser.
GP434-150 is classified as "Indicative Seal" according to ISO 17712:2013 classification.
Barcode or QR-Code printing can be done for mobility (Code128, Int 2/5, Code 39 etc.)
Tensile Strength Ø1,50mm: 250 Kgf
Operating Temperature : -40°C / +120°C
GP434-150 Cable Seal with Aluminum Body Product Details

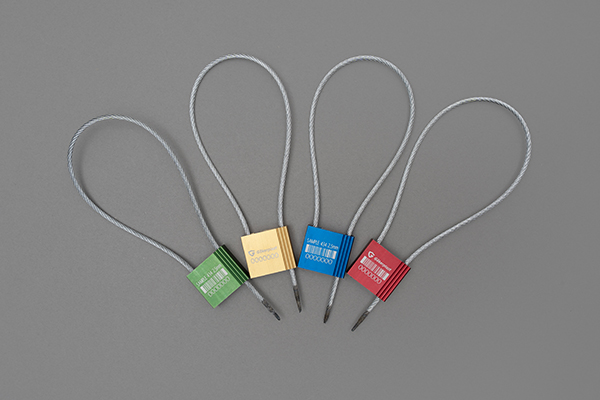

Aluminum Body
Lightweight, robust and durable construction.
Special Design Locking Chamber
Specially engineered locking chamber which prevents tampering attempts.

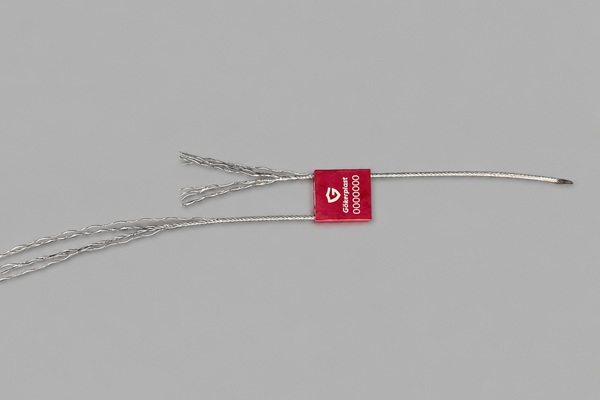

Non-Preformed Cable
GP434-150 comes with non-preformed security cable that frays when cut.
Usage Areas
- Containers
- Oil Trucks
- Trucks
- Utility Meters
- Food Industry
GP434-150 Cable Seal with Aluminum Body Color Options
For different colors, please contact our sales team.
Red
Blue
Green
Yellow
Black
GP434-150 Cable Seal with Aluminum Body Technical Specifications
| Feature | Value | Unit | Description |
|---|---|---|---|
| Product | GP434 Aluminum Body Cable Seal | – | Security seal with aluminum body and heavy duty steel wire |
| Body Material | Aluminum (AL) | – | Lightweight, durable and long-lasting aluminum body construction |
| Cable Material | Steel (Heavy Winding) | – | High-strength, cut-resistant steel wire |
| Cable Diameter | Ø1.50 | mm | Thinest cable diameter in GP434 series |
| Cable Length | 30 | cm | Standard cable length (special sizes available upon request) |
| Stock Colors | Red, Blue, Green, Yellow, Black | – | Easy identification with different color options |
| Marking Method | Laser Printing | – | Company name, logo and serial number up to 13 digits can be printed |
| Coding Support | Barcode | – | Barcode systems such as Code128, Int 2/5, Code 39 etc. are supported |
| Certificate | ISO 17712:2013 | – | Classified as Indicative Seal for Ø1,50mm |
| Tensile Strength | Ø1,50mm: 250 | Kgf | High mechanical strength that varies with wire diameter |
| Operating Temperature (min) | -40 | °C | Stable performance at low temperatures |
| Operating Temperature (max) | +120 | °C | Form resistance at high temperatures |
GP434-150 Cable Seal with Aluminum Body About Frequently Asked Questions
- What is the GP434 cable seal used for?
GP434 is a cable seal with a high security aluminum body. It is used in containers, trucks, tankers and industrial applications requiring strong, tamper evident protection.
- What size options are available for the GP434?
The GP434 is available in three different cable diameters: 1.5 mm, 2.5 mm and 3.5 mm. The 3.5mm version is an ISO 17712 certified high security seal and meets international cargo security standards.
- Can the cable length be customized?
Description. The cable can be cut to the desired length, ensuring full adaptability to different sealing needs and equipment types.
- Where is GP434 manufactured?
GP434 is 100% manufactured in our production facility in Turkey. This ensures complete control of quality, consistency and traceability.
- What is the Minimum Order Quantity?
The minimum order quantity for 1.5mm and 2.5mm sizes is 500 pieces. In 3.5mm product, it is 250 pieces.
