GP111
GP111 Twist Seal
The GP111 Twist Seal is manufactured with an ultraviolet-resistant polycarbonate (PC) body and polyacetal (POM) internal components. The unique design of its one-piece body provides enhanced security and offers tamper-proof protection.
Three different wire options are available: stainless steel Ø0.63 mm, galvanized steel Ø0.63 mm, and PVC-coated steel Ø0.85 mm. The wire can be shipped either pre-installed in the seal body or as a separate component, in the desired length.
Company name/logo and serial number can be printed via laser marking. Barcode (Code 128, Int 2/5, etc.) and QR Code options are available for mobile applications. A white background can be printed on the transparent body to enhance barcode readability.
Please contact us for current Twist Seal prices and to request a quote.
GP111 Twist Seal Product Features
Made of ultraviolet resistant, flame retardant Polycarbonate (PC) body and Polyacetal (POM) inner part.
The unique design of the one-piece housing provides enhanced security and excellent tamper protection
Stainless steel Ø0.63 mm, Galvanized Steel Ø0.63 mm and PVC coated Steel Ø0.85 mm sealing wire options
The desired length of wire can be assembled on the seal body.
Company name/logo and serial number can be printed with laser marking.
Barcode (Code 128, Int 2/5, etc.) or QR-Code printing option for mobility
A white background can be printed on the transparent body to improve barcode reading quality.
RoHS (Restriction of Hazardous Substances) Directive 2015/863 compliance report is available.
REACH conformity report is available.
UV resistance test as per ISO 4892:3 and Corrosion test as per ISO9227 available
Glow wire (Flame retardancy) test report available
Tensile strength 40 Kgf
Operating temperature: -40°C / +120°C
GP111 Twist Seal Product Details
Marking
Company name/logo and consecutive serial number are permanently engraved with laser marking. Thanks to the white background option on the transparent body, it provides high scanning performance for high Barcode and QR-Code printing.
Security
One-piece body and POM mechanism makes tampering attempts visible and prevents unauthorized opening. With 40 Kgf tensile strength, it offers a robust solution as a security seal in critical applications.

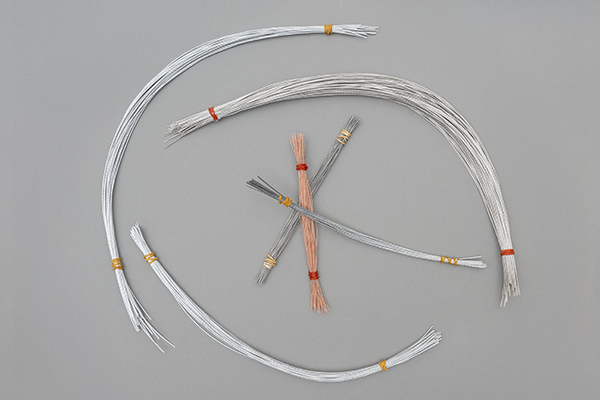

Wire Options
We offer Galvanised or Stainless Steel 0,63mm PVC coated Sealing Wire types. Length can be customized according to your application. The product is shipped with pre-assembled or disassembled wire. Preassembled wire speeds up installation for operators and simplifies inventory management.

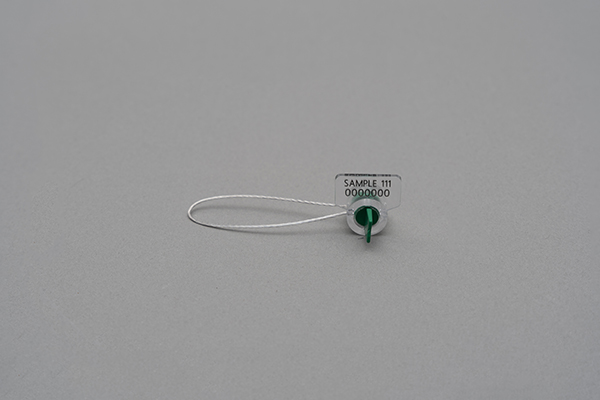

Material & Durability
UV-resistant and Flame-retardant PolyCarbonate body maintain form in outdoor conditions. -40 °C / +120 °C operating range ensures all-season performance and stable locking. Flame retardancy feature is crucial on utility meters against fire safety.
Usage Areas
- Oil Trucks
- Utility Meters
- Laboratories
GP111 Twist Seal Color Options
For different colors, please contact our sales team.
Blue
Red
Green
Yellow
Orange
White
GP111 Twist Seal Technical Specifications
| Sealing wire diameter | Ø0.63 / Ø0.63 / Ø0.85 | mm | Stainless / Galvanized / PVC coated |
| Wire length | Optional | mm-cm | Shipped assembled or disassembled |
| Tensile strength | 40 | Kgf | Laboratory measurement value |
| Operating temperature | -40 / +120 | °C | Min / Max |
GP111 Twist Seal Technical Drawings
You can click on the image to view the product's technical drawings in detail.
GP111 Twist Seal About Frequently Asked Questions
- What makes the GP111 meter seal different?
Made from polycarbonate, the GP111 offers a strong, tamper evident and durable seal thanks to its superior design and ultrasonic welding technology. This seal meets high safety standards. The inner part (insert) is made of POM material for easy rotation.
- How to procure and install the GP111?
The GP111 is supplied individually and the wire can be pre-assembled, enabling quick and practical installation in the field.
- Why do customers choose GP111?
With the highest production capacity among meter seals, the GP111 offers shorter lead times and consistent reliability. This makes it an ideal choice for customers who value efficiency and quality.
- What is the Minimum Order Quantity?
1000 pieces.
