GP570
GP570 Pull-up Seal with Metal Insert
The GP570 Metal Clip Pull-up Seal is a professional sealing solution that maximizes security in the energy, fire safety and health industry. It is specifically designed with a very thin plastic tail to fit various utility meter sealing holes, fire extinguishers , emergency kits and hospital trolleys. It is available in two different material options: Polypropylene (PP) where needed very low breaking strength and Polyamide (PA) to ensure longer service life. The GP570 , available in both flag and non-flag versions, provides extra security thanks to its steel insert secured by a heat-staking method.
GP570 Pull-up Seal with Metal Insert Product Features
Available in two material options made of PolyPropylene (Code: GP570) and PolyAmide (Code: GP570-N)
The very thin tail section (1,3mm) makes it suitable for applications where the sealing hole is very small.
Also available without marking area option; Product code : GP571
For extra safety, a steel insert is added inside the chamber with the help of heat-staking technic.
Company name/logo and serial number up to 8 digits can be printed.
Only laser printing is available as a marking method.
Only QR code printing can be done for mobile applications.
Shipped in groups of 10.
Tensile Strength: 8 Kgf (PP), 10 Kgf (PA)
Operating Temperature: -20°C/+80°C (PP) , -40°C/+80°C (PA)
GP570 Pull-up Seal with Metal Insert Product Details
Ultra-thin Tail design & Improved safety
Its ultra-thin tail design makes it suitable for highly specialized applications. GP570 is the only plastic seal solution in the industry, within this tail diameter range, that is reinforced with a metal clip to enhance security against tampering.

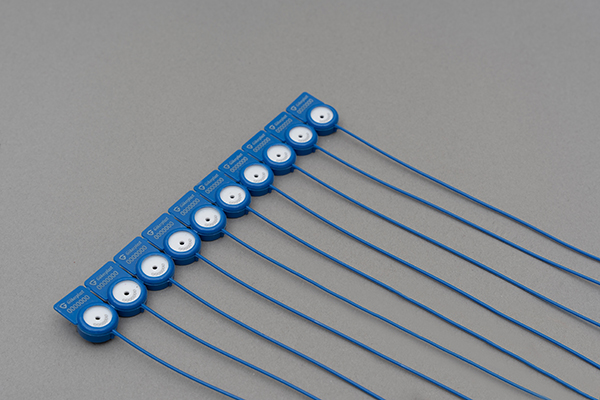

Material and strength
PolyPropylene and PolyAmide body options are available for different applications. PolyPropylene is recomended for use on fire extinguishers, emergency kits or stop handles where very low breaking strengths needed. PolyAmide recomended for use on utility meters.
Marking and serial number
Only laser printing is applied; company name/logo and 8-digit serial number are permanently and indelibly engraved.
QR code integration
QR code (QR) printing compatible with mobile applications. There is no barcode option due to limited marking area.
Usage Areas
- Healthcare
- Utility Meters
- Fire Safety
- Pharmaceutical
- Laboratories
GP570 Pull-up Seal with Metal Insert Color Options
For different colors, please contact our sales team.
Blue
Red
Green
Yellow
Orange
Gray
White
GP570 Pull-up Seal with Metal Insert Technical Specifications
| Feature | Value | Unit | Description |
|---|---|---|---|
| Material options | PP / PA | – | Polypropylene (PP) and Polyamide (PA) options |
| Tail cut | Very thin | – | Suitable for limited sealing areas |
| Text field | Yes / No (GP571) | – | GP571: version without text field |
| Security | Steel clip | – | Inserted into the plug by hot sealing |
| Marking method | Laser | – | Company name/logo + serial number (8 digits) |
| Coding | Karekod (QR) | – | For mobile apps; no barcode |
| Packaging | Group of 10 | – | Standard shipping method |
| Tensile strength (PP) | 8 | Kgf | PP for body |
| Tensile strength (PA) | 10 | Kgf | PA for body |
| Operating temperature (PP) | -20 / +80 | °C | Polypropylene version |
| Operating temperature (PA) | -40 / +80 | °C | Polyamide version |
GP570 Pull-up Seal with Metal Insert Technical Drawings
You can click on the image to view the product's technical drawings in detail.
GP570 Pull-up Seal with Metal Insert About Frequently Asked Questions
- What are GP570 and GP571 belt seals used for?
GP570 and GP571 are ultra-thin belt seals designed for use in confined spaces. They are ideal for light duty applications. They are used where secure yet easily removable sealing is required, such as emergency kits, medical equipment and fire extinguishers. It is also preferred for meter sealing in some European countries.
- What are the main differences between GP570 and GP571?
The GP570 is available in a flagged version that allows the addition of imprints or credentials. The GP571 is the version without flags and offers a more compact design. Both models have a tail diameter of 1.3 mm and an overall length of 185 mm, making them among the thinnest seals in the world.
- What materials and strength options are available?
Both models are made of Polypropylene (PP) and Polyamide (PA) materials. - The PP type breaks with a force of approximately 8 kgf. - The PA type breaks with a force of approximately 10 kgf. Both models are supplied in mats of 10, allowing for easy handling and efficient application.
- What is the Minimum Order Quantity?
1000 pieces.
